Air Compressor > Mobile Air Compressor >

Kaishan KSDY Electrical Portable Screw Air Compressor

Kaishan electrical portable screw air compressors are widely used in industries like mining, water conservancy, construction, energy, and shipbuilding. Favored for their high reliability, these compressors feature fewer components, minimizing wear and extending service life up to 40,000-80,000 hours.
With advanced automation, they are easy to operate and require little maintenance, making them ideal for unmanned operation. Thanks to excellent power balance, they run smoothly at high speeds and require no foundation, enabling lightweight, compact, and portable designs.
Kaishan compressors ensure efficiency with their forced airflow technology, maintaining high volumetric performance across a wide speed range, regardless of pressure variations. The power range spans from 11-250kW, with airflow up to 40m³/min, offering custom models for various pressure and capacity needs.
Choose Kaishan electrical compressors for energy-efficient, durable performance in demanding applications.
EMAIL US INQUIRY

开山牌KSDY电动移动螺杆压缩机相关参数
开山牌KSDY电动移动螺杆压缩机相关参数
Kaishan KSDY Series Electrical Portable Screw Air Compressor Specifications

型号 Model	排气压力(MPa) Working pressure	排气量(m³/min) Capacity	功率(kW) power	排气接口 Outlet size	重量(kg) Weight	长(mm) Length	宽(mm) Width	高(mm) Height

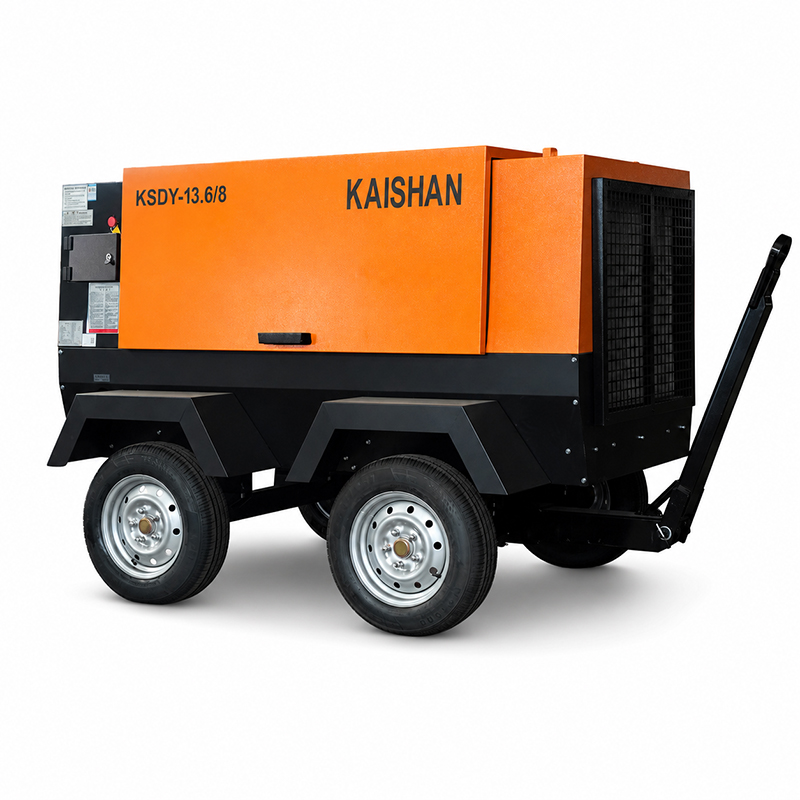

KSDY-13.6/8	0.8	13.6	75	G2×1,G¾×1	1750	2700	1700	700
KSDY-12.5/10	1.0	12.5	75	G2×1,G¾×1	1750	2700	1700	1700
KSDY-10/14.5(2 wheels)	1.5	10.0	75	G2×1,G¾×1	1600	2500	1530	1700
KSDY-16.5/8	0.8	16.5	90	G2×1,G¾×1	1940	2730	1680	1800
KSDY-13/14.5(2 wheels)	1.5	13.0	90	G2×1,G¾×1	1760	2700	1670	1800
KSDY-13/14.5(4 wheels)	1.5	13.0	90	G2×1,G¾×1	1910	2730	1680	1800
KSDY-20/8	0.8	20.0	110	G2×1,G¾×1	3115	3065	1835	2000
KSDY-16.5/12	1.2	16.5	110	G2×1,G¾×1	3000	3065	1835	2000
KSDY-24/8	0.8	24.0	132	G2×1,G¾×1	3150	3065	1835	2000
KSDY-18/13	1.3	18.0	132-2pole	G2×1,G¾×1	3070	3065	1835	2000
KSDY-15/17	1.7	15.0	132-2pole	G2×1,G¾×1	2975	3065	1835	2000
KSDY-24/18-II	1.8	24.0	132-4pole	G2×1,G¾×1	3700	3400	1620	2200

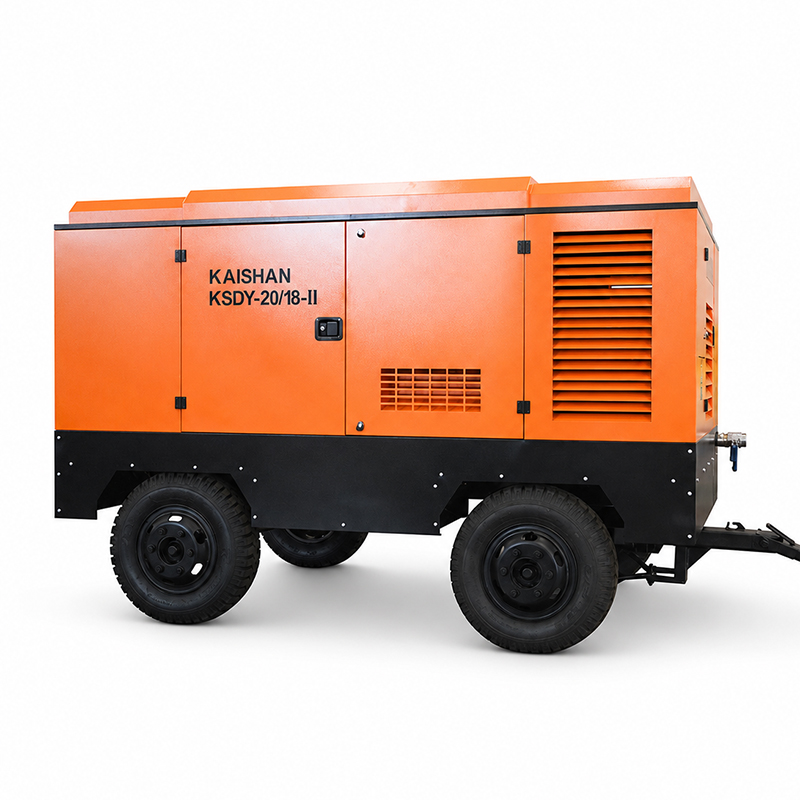

KSDY-20/18-II	1.8	20.0	132-2pole	G2×1,G¾×1	3100	3400	1620	2200
KSDY-26/19	1.9	26.0	185-2pole	G2×1,G¾×1	4450	3670	1800	2285
KSDY-23.5/25	2.5	23.5	185-4pole	G2×1,G¾×1	4450	3670	1800	2285
KSDY-27/20	2.0	27.0	200-4pole	G2×1,G¾×1	5000	3670	1800	2285
KSDY-25.5/25	2.5	25.5	200-4pole	G2×1,G¾×1	5000	3670	1800	2285
KSDY-30/20	2.0	30.0	220-4pole	G2×1,G¾×1	5600	3750	1950	2440
KSDY-27.5/25	2.5	27.5	220-4pole	G2×1,G¾×1	5600	3750	1950	2440
KSDY-33.5/20	2.0	33.5	250-2pole	G2×1,G¾×1	5800	3750	1950	2440
KSDY-30.5/25	2.5	30.5	250-4pole	G2×1,G¾×1	5800	3750	1950	2440
