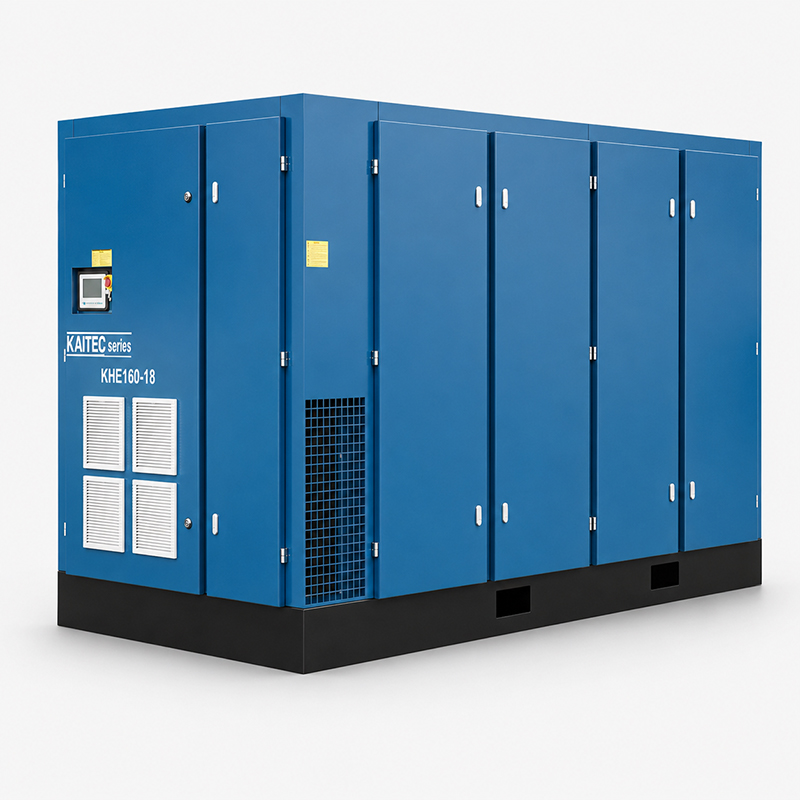

Kaishan KHE Series High Pressure Screw Air Compressor

The Kaishan KHE series high-pressure screw air compressor is meticulously developed by the North American R&D center, with a maximum working pressure of up to 4.0 MPa. Equipped with the second-generation SKY rotor profile, its energy efficiency level is 10% higher than that of similar products.
The equipment features a high-efficiency motor with characteristics such as high starting torque, low noise, and long service life. It adopts an F-class insulation rating and an IP54 protection rating, and selects SKF bearings to ensure stable operation under harsh high-pressure working conditions.
The control system is equipped with a high-definition touch display screen, offering simple operation and a friendly interface. It supports real-time operating parameter display and historical record queries, providing a convenient equipment management and maintenance experience.
EMAIL US INQUIRY

开山KHE系列高压螺杆压缩机相关参数
开山KHE系列高压螺杆压缩机相关参数
Kaishan KHE High Pressure Screw Air Compressor Specifications

型号 Model	排气压力(MPa) Working pressure	排气量(m³/min) Capacity	功率(kW) Power	排气接口 Outlet size	重量(kg) Weight	长(mm) Length	宽(mm) Width	高(mm) Height
KHE90-18	1.8	11.60	90	DN50	2800	2480	1520	1820
KHE110-18	1.8	13.80	110	DN65	3550	3000	1690	2050
KHE132-18	1.8	16.50	132	DN65	3600	3000	1690	2050
KHE160-18	1.8	20.80	160	DN65	4800	3565	1915	2320
KHE185-18	1.8	24.00	185	DN65	4850	3565	1915	2320
KHE200-18	1.8	25.20	200	DN65	4920	3565	1915	2320
KHE200-20	2.0	23.90	200	DN65	5230	3565	1915	2320
KHE160W-18	1.8	20.80	160	DN65	4800	2860	1860	1990
KHE185W-18	1.8	24.00	185	DN65	4850	2860	1860	1990
KHE200W-18	1.8	25.20	200	DN65	4920	2860	1860	1990
PMVF220W-18	1.8	30.00	220	DN80	5300	3160	1860	2200
KHE250W-18	1.8	34.50	250	DN80	5500	3160	1860	2200
KHE200W-20	2.0	23.90	200	DN65	5230	2860	1860	1990
KHE160W-25	2.5	17.50	160	DN65	4800	2860	1860	1990
KHE185W-25	2.5	20.20	185	DN65	4850	2860	1860	1990
KHE200W-25	2.5	22.00	200	DN65	5230	2860	1860	1990
KHE220W-25	2.5	24.50	220	DN80	5300	3160	1860	2200
KHE250W-25	2.5	27.50	250	DN80	5500	3160	1860	2200
KHE315W-25	2.5	31.00	315	DN80	6500	3760	2260	2260
KHE400W-25	2.5	39.00	400	DN80	7400	3760	2260	2260
KHE200W-35	3.5	16.00	200	DN65	5300	3440	1860	2230
KHE250W-35	3.5	21.00	250	DN65	6100	3440	1860	2230
KHE315W-35	3.5	26.00	315	DN80	6500	3760	2260	2260
KHE400W-35	3.5	32.00	400	DN80	7400	3760	2260	2260
KHE250W-40	4.0	20.00	250	DN65	6100	3440	1860	2230
