Kaishan JN Series Low Pressure Screw Air Compressor

Kaishan JN series low-pressure screw air compressors are tailor-made for nominal discharge pressure requirements of 0.15MPa–0.3MPa. Whether for new projects or replacing traditional 0.7–0.8MPa screw compressors, they can effectively save over 30% in electricity costs, helping enterprises reduce production costs and carbon emissions.
The equipment is equipped with the high-efficiency SKY series airend specially designed for low-pressure working conditions, supporting automatic adjustment of the internal compression ratio within the discharge pressure range of 0.2–0.5MPa to ensure optimal energy efficiency under different operating pressures.
Some models adopt oil pump forced lubrication to ensure sufficient oil injection volume and the optimal oil-gas mixing ratio even under extremely low discharge pressures.
EMAIL US INQUIRY

开山JN低压螺杆压缩机参数
开山JN低压螺杆压缩机参数
Kaishan JN Low Pressure Screw Air Compressor Specifications

型号 Model	排气压力(MPa) Working pressure	排气量(m³/min) Capacity	功率(kW) Power	排气接口 Outlet size	重量(kg) Weight	长(mm) Length	宽(mm) Width	高(mm) Height

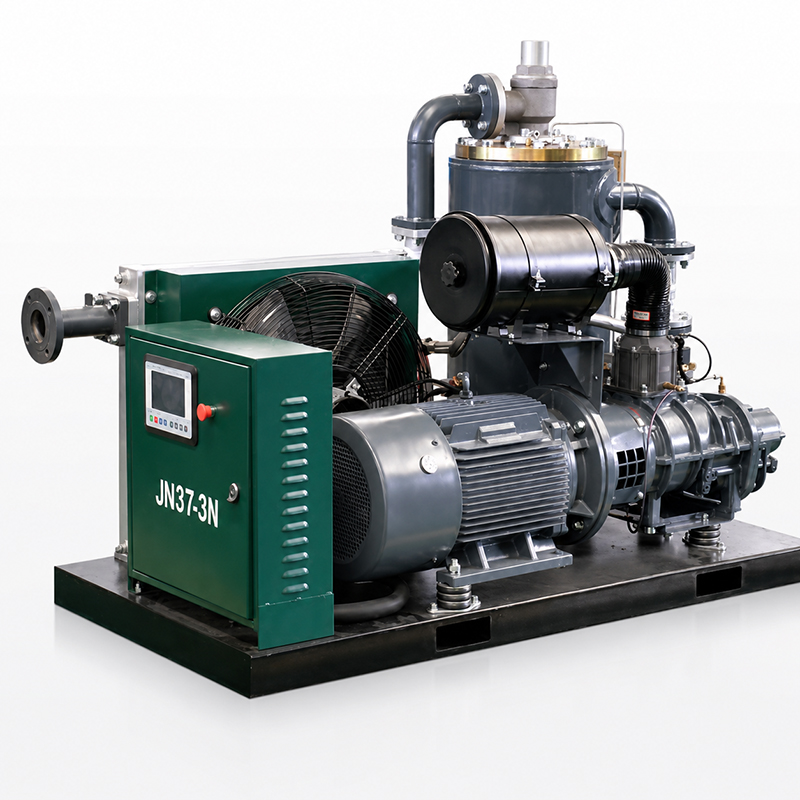

JN37-3N	0.30	10.70	37	DN65	880	1780	940	1435

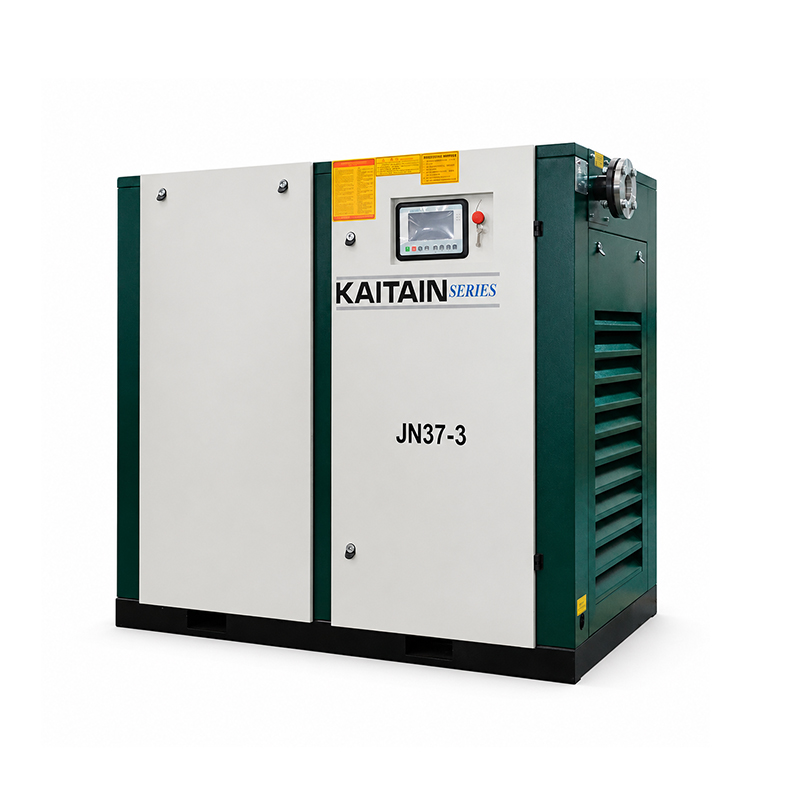

JN37-3G	0.30	10.70	37	DN65	950	1695	1050	1590
JN55-3G	0.30	18.20	55	DN100	2070	2510	1560	1860
JN55-3GA	0.30	19.50	55	DN100	2330	2510	1560	1860
KHE90-3GA	0.30	31.20	90	DN125	2980	2860	1760	2050
KHE90-3.5GA	0.35	31.00	90	DN125	2980	2860	1760	2050
KHE110-4GA	0.40	31.00	110	DN125	3050	2860	1760	2050
KHE132-3A	0.30	43.80	132	DN125	6500	3560	2160	2200
*KHE160-3GA	0.30	54.90	160	DN150	4750	3760	2060	2240
*KHE160-3.5GA	0.35	54.60	160	DN150	4750	3760	2060	2240
*KHE250-3GA	0.30	83.50	250	DN250	8000	4390	2200	2350
*KHE250-3.5GA	0.35	83.00	250	DN150	8000	4390	2200	2350
JN30-5GA	0.50	7.10	37	G1½	870	1695	1000	1490
JN45-5GA	0.50	10.80	45	DN65	2200	2450	1460	1580
JN55-5GA	0.50	12.50	55	DN65	2200	2450	1460	1580
JN75-5GA	0.50	17.80	75	DN80	2500	2760	1630	1735
JN90-5GA	0.50	20.80	90	DN80	2260	2760	1630	1735
JN110-5GA	0.50	24.50	110	DN100	3300	3160	1810	2080
JN132-5GA	0.50	30.50	132	DN100	3400	3160	1810	2080
JN160-5GA	0.50	37.20	160	DN100	4230	3310	1980	2230
JN250-5GA	0.50	55.70	250	DN125	6000	3510	2160	2280
