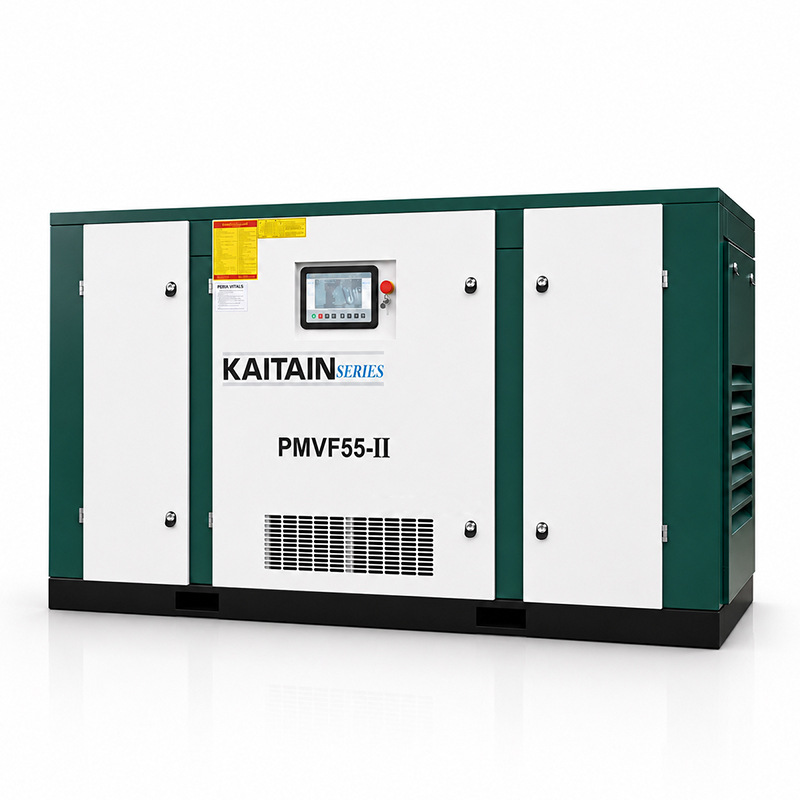

Kaishan PMVF Series Variable Frequency Two-stage Screw Air Compressor

Maximize industrial efficiency with the Kaishan PMVF series two-stage screw compressor. Featuring a gear-driven two-stage airend with SKF bearings and an innovative oil-gas mixing system, this premium screw compressor exceeds China's Grade 1 energy efficiency standard across 60–100% variable frequencies, delivering exceptional power savings at 40–90% loads.
Driven by patented flux-weakening sensorless control and a high-efficiency permanent magnet synchronous motor, this intelligent Kaishan compressor ensures ultra-stable air pressure and smooth soft starting. Its flat efficiency curve maintains over 80% performance even at a 20% low load, significantly cutting energy waste. Upgrade to a smart, high-performance compressed air solution today.
EMAIL US INQUIRY

开山PMVF系列永磁变频两级压缩螺杆压缩机参数
开山PMVF系列永磁变频两级压缩螺杆压缩机参数
Kaishan PMVF Series Variable Frequency Two-Stage Compression Screw Air Compressor Specifications

型号 Model	排气压力(MPa) Working pressure	排气量(m³/min) Capacity	功率(kW) Power	排气接口 Outlet size	重量(kg) Weight	长(mm) Length	宽(mm) Width	高(mm) Height
PMVF22-II	0.6-0.9	3.80-4.60	22	G1	550	1650	900	1110
PMVF22H-II	1.0-1.3	3.35-3.90	22	G1	550	1650	900	1110
PMVF37-II	0.6-0.9	6.50-7.65	37	G1½	740	1820	1000	1140
PMVF37H-II	1.0-1.3	5.50-6.40	37	G1½	740	1820	1000	1140
PMVF37L-II	0.5-0.7	7.95-9.05	37	G1½	800	1820	1000	1140
PMVF55-II	0.6-0.9	10.50-12.50	55	G1½	1100	2100	1200	1330
PMVF55H-II	1.0-1.3	8.20-9.50	55	G1½	1100	2100	1200	1330
PMVF75-II	0.6-0.9	14.50-16.50	75	G2	1450	2160	1220	1580
PMVF75H-II	1.0-1.3	10.00-12.50	75	G2	1450	2160	1220	1580
PMVF90-II	0.6-0.9	17.60-20.90	90	DN65	2040	2650	1280	1650
PMVF90H-II	1.0-1.3	14.50-16.80	90	DN65	2040	2650	1280	1650
PMVF110-II	0.6-0.9	21.50-25.50	110	DN80	2400	2700	1440	1880
PMVF110H-II	1.0-1.3	18.20-20.70	110	DN80	2400	2700	1440	1880
PMVF132-II	0.6-0.9	25.50-32.50	132	DN80	2460	2700	1440	1880
PMVF132H-II	1.0-1.3	20.90-23.90	132	DN80	2460	2700	1440	1880
PMVF160-II	0.6-0.9	32.50-38.30	160	DN100	4180	3560	1980	2100
PMVF160H-II	1.0-1.3	25.20-28.50	160	DN100	4180	3560	1980	2100
PMVF185-II	0.6-0.9	37.50-45.20	185	DN100	4220	3560	1980	2100
PMVF185H-II	1.0-1.3	29.00-33.70	185	DN100	4220	3560	1980	2100
PMVF200-II	0.6-0.9	40.50-47.90	200	DN100	4710	3560	1980	2230
PMVF200H-II	1.0-1.3	31.40-36.40	200	DN100	4710	3560	1980	2230
